Cluster Aware File system with multiple instance attach iSCSI block volume in OCI using OCFs2

Since the advent of network attached storage, having a shared file system accessible across multiple instances is a common phenomenon.With the help of protocols like NFS, SMB, iSCSI we can present same volume to multiple instances but to make something like cluster aware for concurrent read/write , we need technologies like Oracle cluster file system.

Today we will go through the step by step process of configuring the OCFS2 for cluster aware post block volumes are attached to multiple instances.

Some overview about OCFS2.

OCFS2

OCFS2 has a large number of features that make it suitable for deployment in an enterprise-level computing environment:

• - Support for ordered and write-back data journaling that provides file system consistency in the event of power failure or system crash.

• - Block sizes ranging from 512 bytes to 4 KB, and file-system cluster sizes ranging from 4 KB to 1 MB (both in increments of powers of 2). The maximum supported volume size is 16 TB, which corresponds to a cluster size of 4 KB. A volume size as large as 4 PB is theoretically possible for a cluster size of 1 MB, although this limit has not been tested.

• - Extent-based allocations for efficient storage of very large files.

• - Optimized allocation support for sparse files, inline-data, unwritten extents, hole punching, reflinks, and allocation reservation for high performance and efficient storage.

• - Indexing of directories to allow efficient access to a directory even if it contains millions of objects.

• - Metadata checksums for the detection of corrupted inodes and directories.

• - Extended attributes to allow an unlimited number of name:value pairs to be attached to file system objects such as regular files, directories, and symbolic links.

• - Advanced security support for POSIX ACLs and SELinux in addition to the traditional file-access permission model.

• - Support for user and group quotas.

• - Support for heterogeneous clusters of nodes with a mixture of 32-bit and 64-bit, little-endian (x86, x86_64, ia64) and big-endian (ppc64) architectures.

• - An easy-to-configure, in-kernel cluster-stack (O2CB) with a distributed lock manager (DLM), which manages concurrent access from the cluster nodes.

• - Support for buffered, direct, asynchronous, splice and memory-mapped I/O.

• - A tool set that uses similar parameters to the ext3 file system.

Getting started:

* Create 2 OCI instances across same AD and same region.

* Attach shared iSCSI block volumes

* Get the instance private IP address

* Set the Firewall rules and port settings in Security list of the VPN

* Install ocsf2 tools

* Create & Configure cluster

* Create partition on shared device

* Mount the device

* Check the cluster status and test the same.

> Create the VCN and select wizard with internet connectivity.

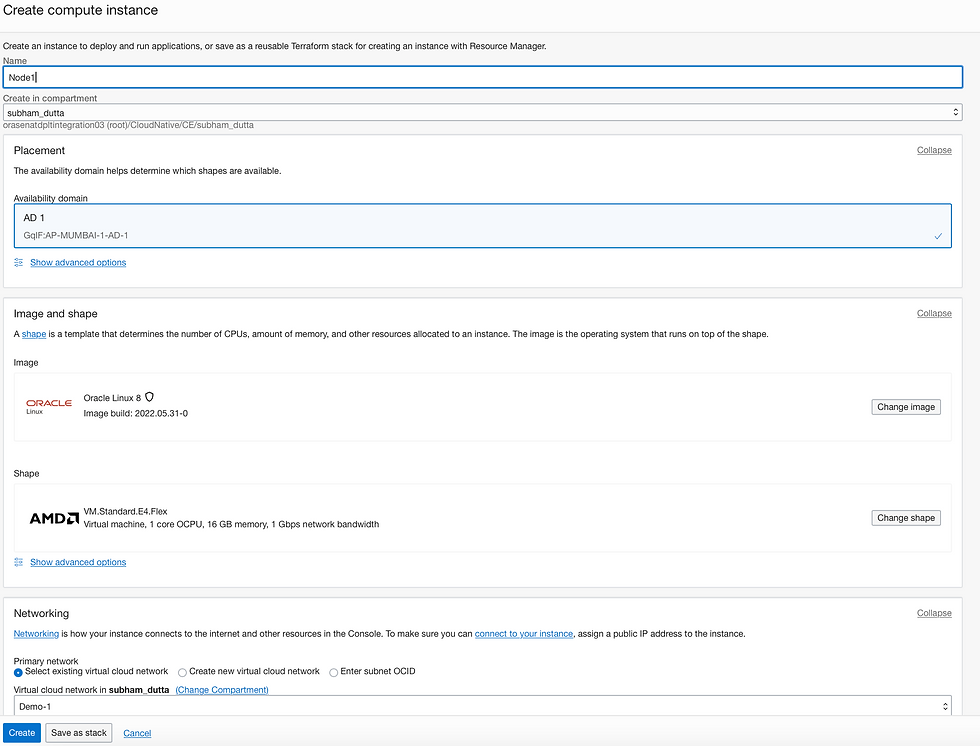

> Create two instances with proper naming convention and chose default images. (NOTE: make sure both the instance are in same OCI AD and Region.)

> Next go to the VCN -> Demo-1 -> Security list and add rule for port 7777 and 3206.

> Create and attach the block volume to both the instances.

> Attach the volume to the compute Instances. make sure to select iSCSI and Read/Write Shareable.

> Once this part is complete, we can proceed to OCFS creation and configuration.

On Node 1, check the firewall settings. Repeat the same on Node 2.

> Then install ocfs tools on both the nodes. In my case, it was already installed earlier, hence it shows nothing to do.

> Next create cluster and add members. [on both the nodes]

[opc@node1 ~]$ sudo o2cb add-cluster ociocfs2

[opc@node1 ~]$ sudo o2cb add-node ociocfs2 node1 --ip xx.xx.xx.xx (Private IP)

[opc@node1 ~]$ sudo o2cb add-node ociocfs2 node2 --ip xx.xx.xx.xx (Private IP)

if unsure, run #ifconfig to get the private IP (172** or 10* or 192* )

Once done the cluster configuration file should have the below info.

[NOTE: Double check whether the node name/Hostname has been given accurately in the above command sand should reflect in the conf file.]

Check whether the cluster.conf exist in the Node2 , if not create the same using

#sudo mkdir /etc/ocfs2

#sudo vi /etc/ocfs2/cluster.conf and paste the below

next run the configuration on both the nodes.

** Choose O2CB driver on boot : Yes and rest as it is/default.

Post configuration , check the status and will find that the heartbeat is not-active.

[opc@node1 ~]$ sudo /sbin/o2cb.init status

Driver for "configfs": Loaded

Filesystem "configfs": Mounted

Stack glue driver: Loaded

Stack plugin "o2cb": Loaded

Driver for "ocfs2_dlmfs": Loaded

Filesystem "ocfs2_dlmfs": Mounted

Checking O2CB cluster "ociocfs2": Online

Heartbeat dead threshold: 31

Network idle timeout: 30000

Network keepalive delay: 2000

Network reconnect delay: 2000

Heartbeat mode: Local

Checking O2CB heartbeat: Not Active

Debug file system at /sys/kernel/debug: mounted

[opc@node1 ~]$

Enable o2cb and ocfs using below command to start at boot time.

#sudo systemctl enable o2cb

#sudo systemctl enable ocfs2

> Next set the parameter correctly for Kernel panic and Kernel panic on oops.

> Run the blow command and add the two lines in the sysctl.conf file [Repeat the same in Node 2].

> Now create partition and format using ocfs2 file system.

[opc@node1 ~]$ sudo fdisk /dev/sdb

[opc@node1 ~]$ sudo mkfs.ocfs2 -L "ocfs2" /dev/sdb

mkfs.ocfs2 1.8.6

Cluster stack: classic o2cb

Label: ocfs2

Features: sparse extended-slotmap backup-super unwritten inline-data strict-journal-super xattr indexed-dirs refcount discontig-bg

Block size: 4096 (12 bits)

Cluster size: 4096 (12 bits)

Volume size: 12455405158400 (3040870400 clusters) (3040870400 blocks)

Cluster groups: 94274 (tail covers 512 clusters, rest cover 32256 clusters)

Extent allocator size: 780140544 (186 groups)

Journal size: 268435456

Node slots: 16

Creating bitmaps: done

Initializing superblock: done

Writing system files: done

Writing superblock: done

Writing backup superblock: 6 block(s)

Formatting Journals: done

Growing extent allocator: done

Formatting slot map: done

Formatting quota files: done

Writing lost+found: done

mkfs.ocfs2 successful

Then run the following command to create mountpoint.

[opc@node1 ~]$ sudo mkdir /u01

[opc@node1 ~]$ sudo mount -L ocfs2 /u01

The lsblk status should show something like below:

Repeat the step in Node 2, starting from creation of mountpoint. [NOTE: However if you receive issue with mountpoint, try to detach the volume from node 2 and reattach and try the same command and create partition using fdisk as well, but only during initial stage , not in production]

The final output of the status should look like this:

> Now to test whether the cluster is working or not , copy some files and create some files and edit, write, omit..
